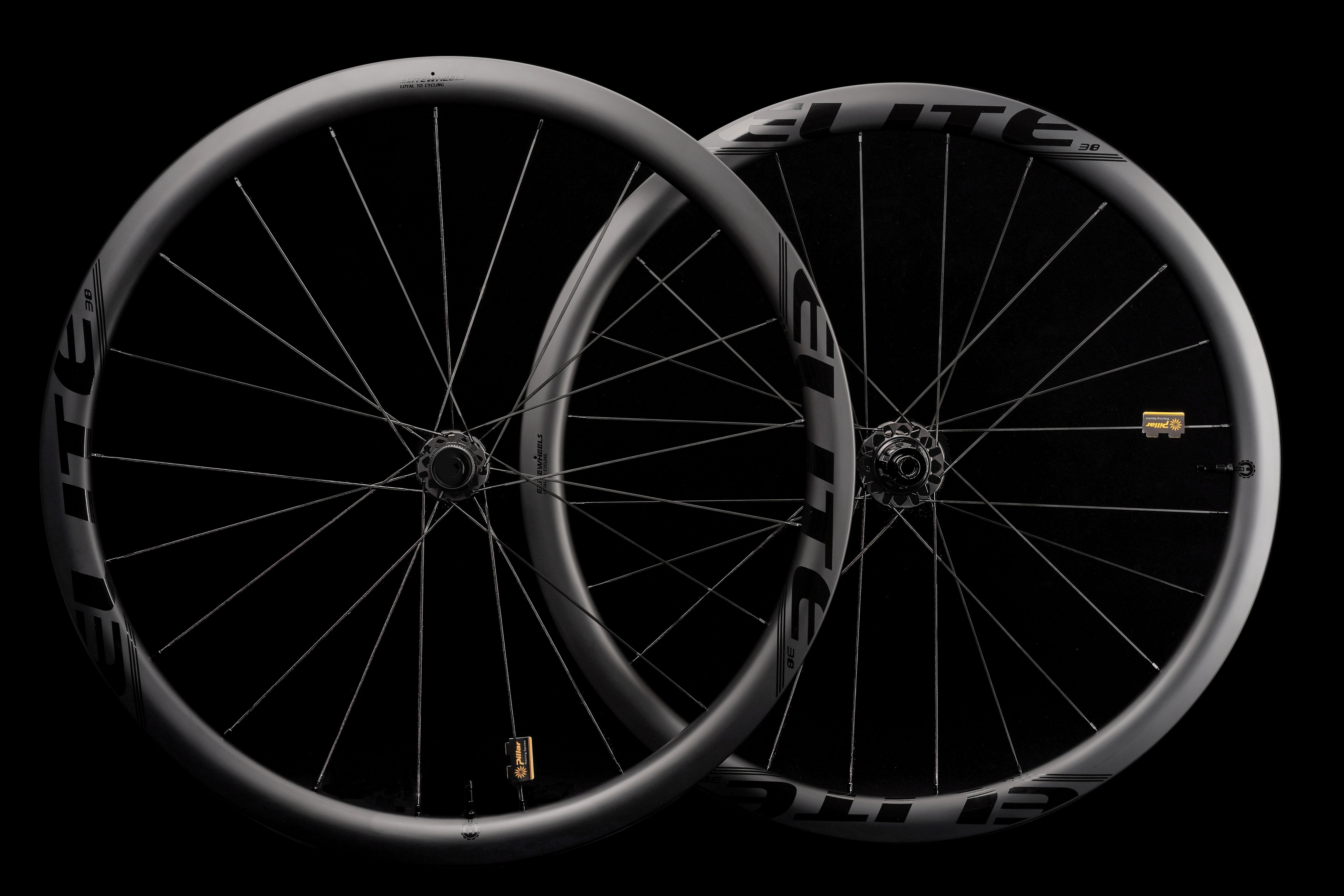

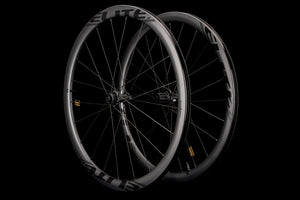

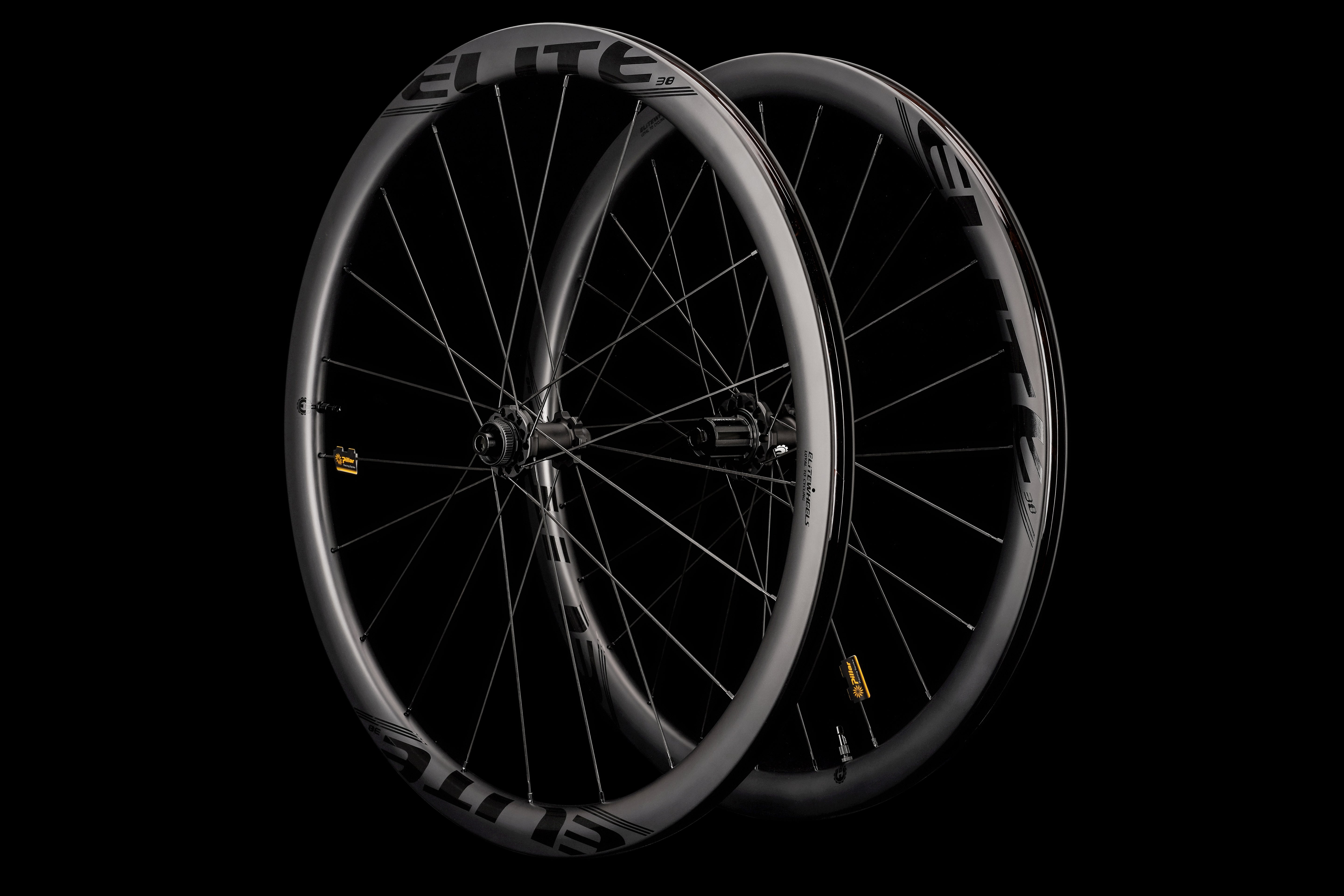

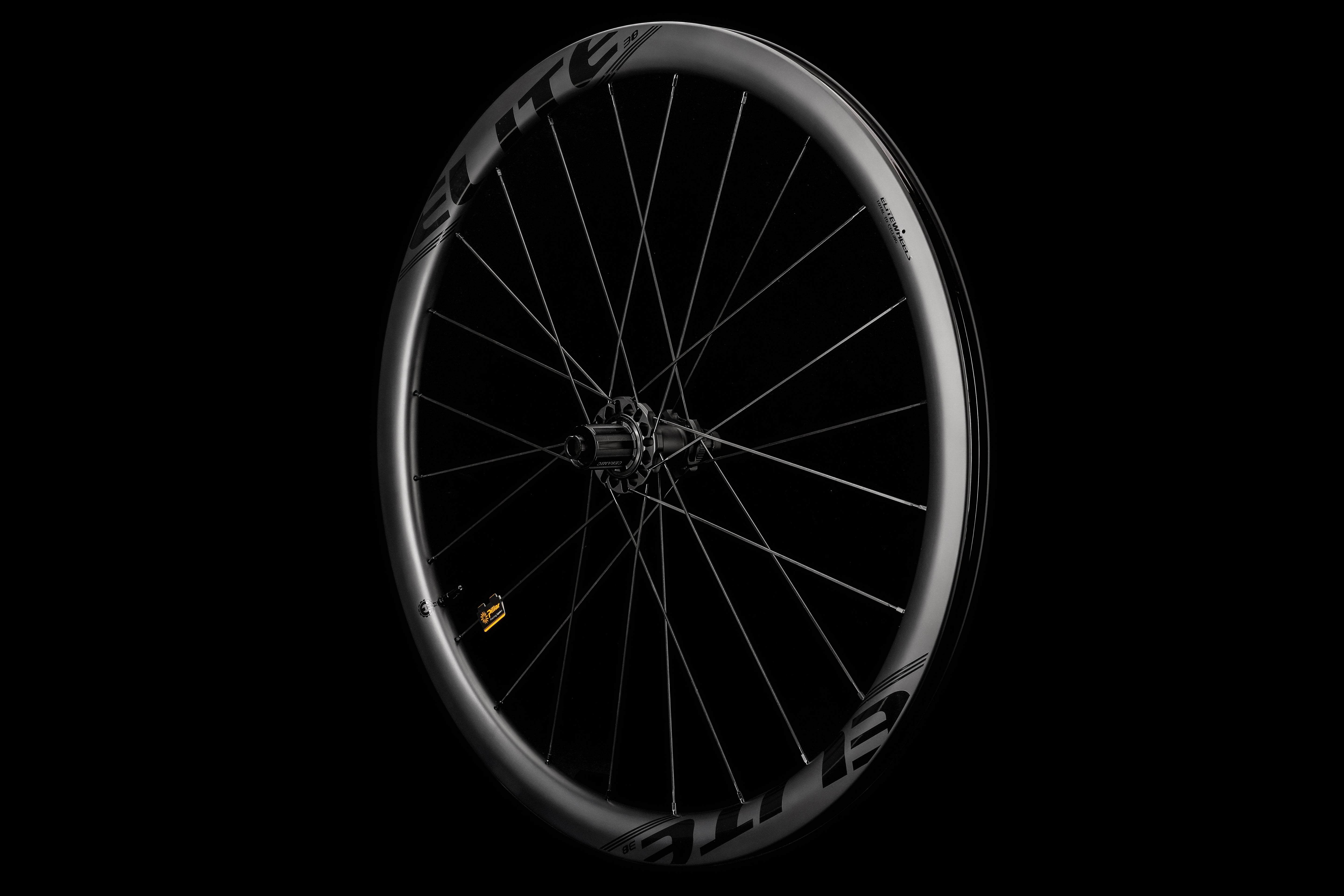

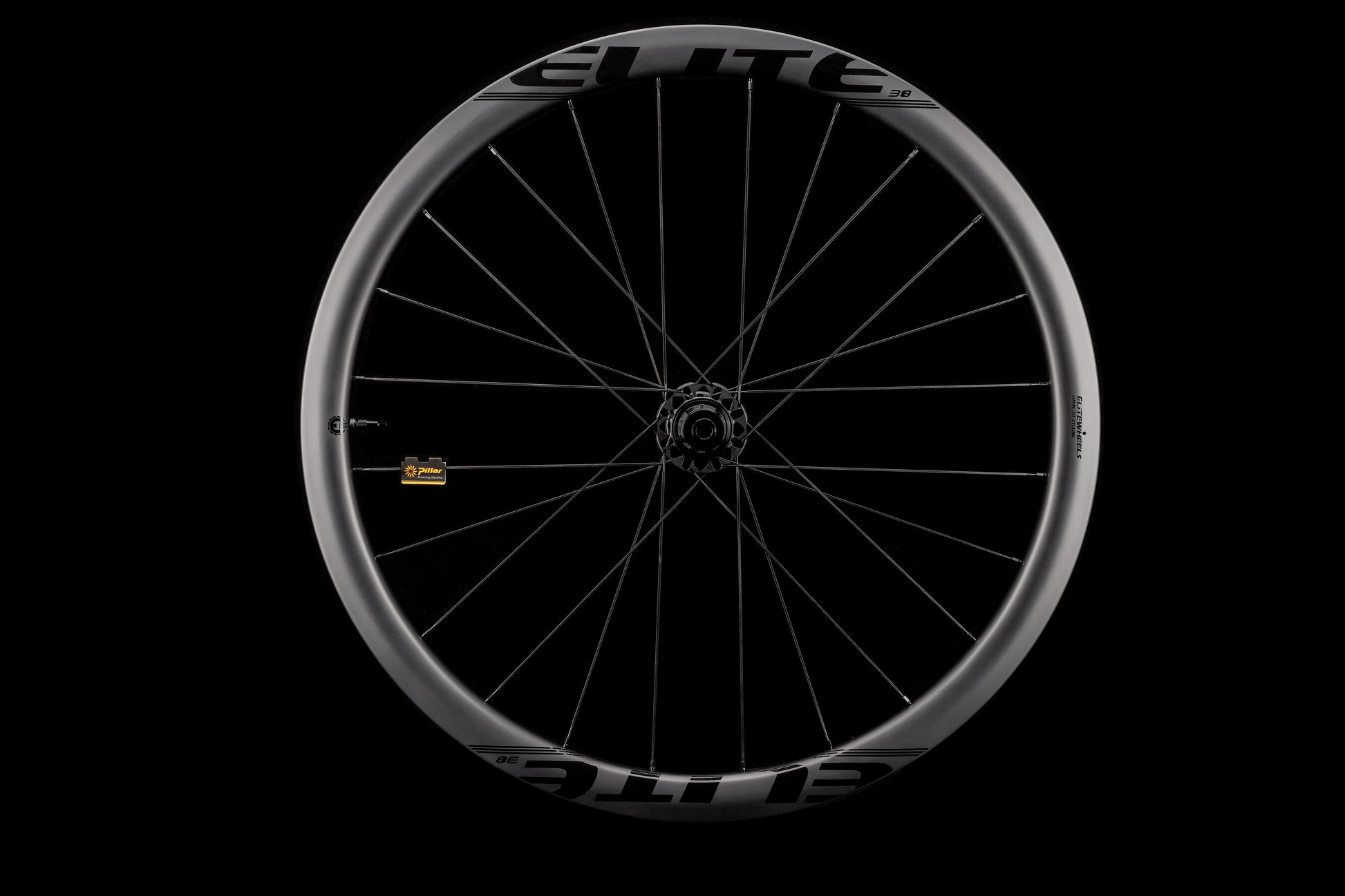

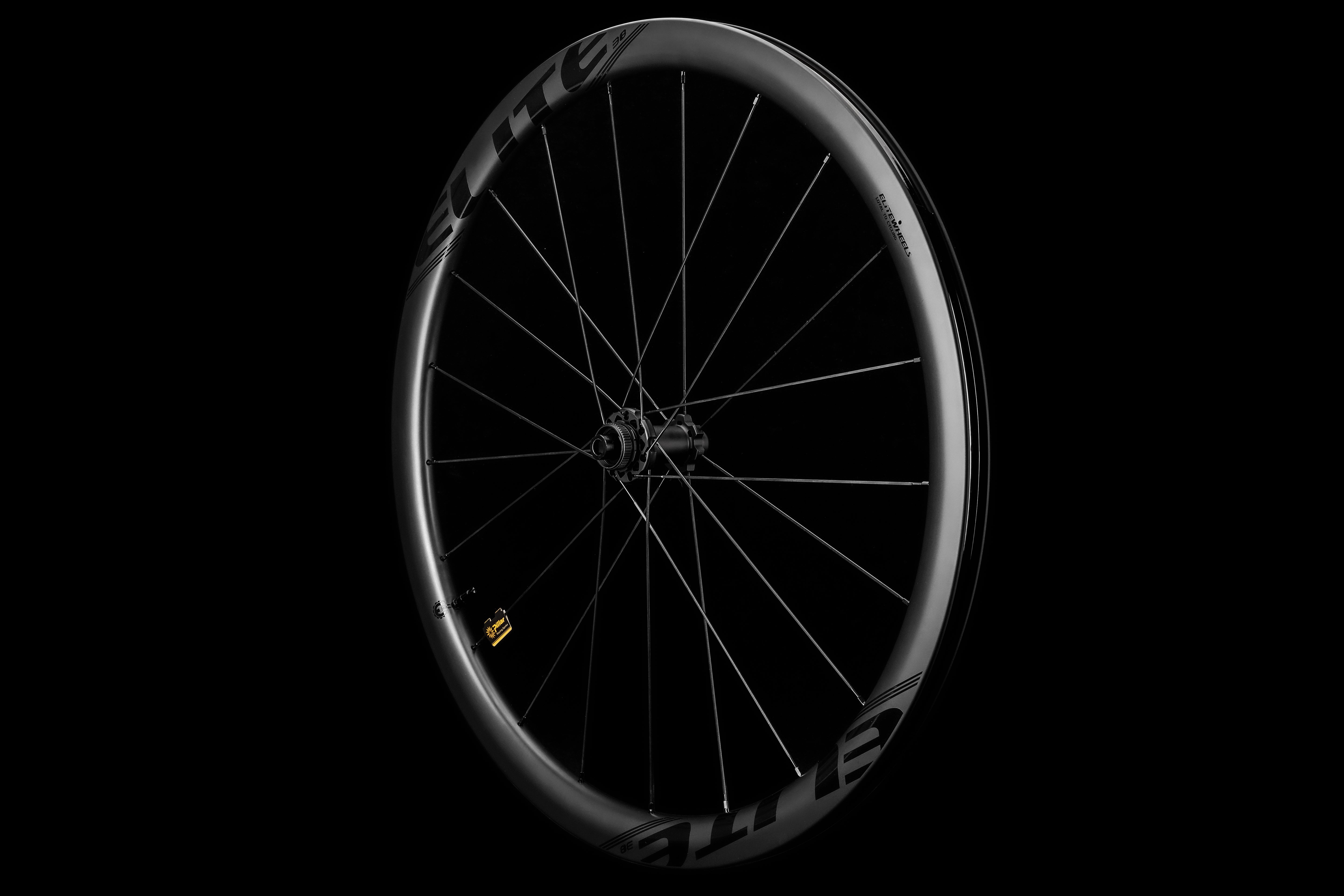

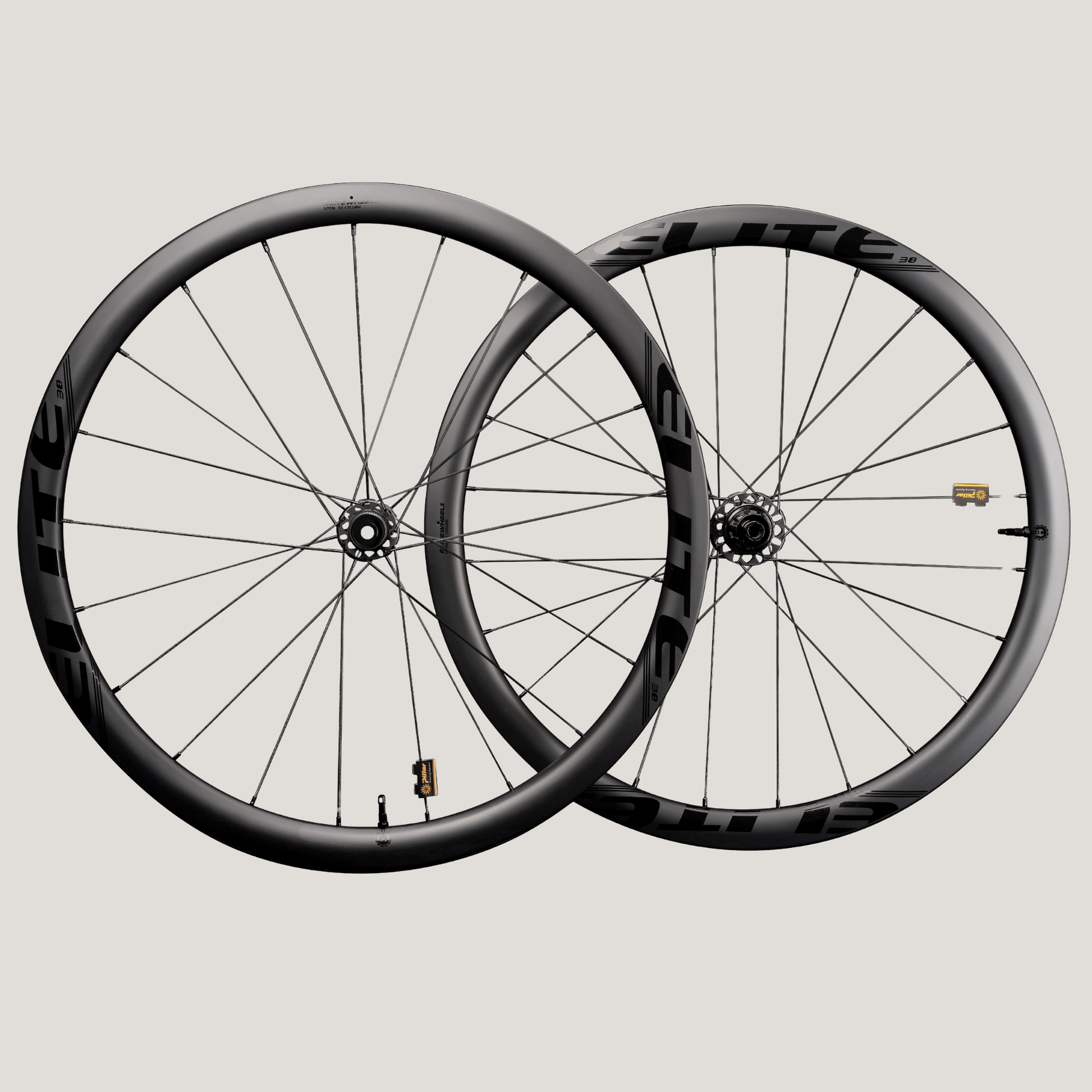

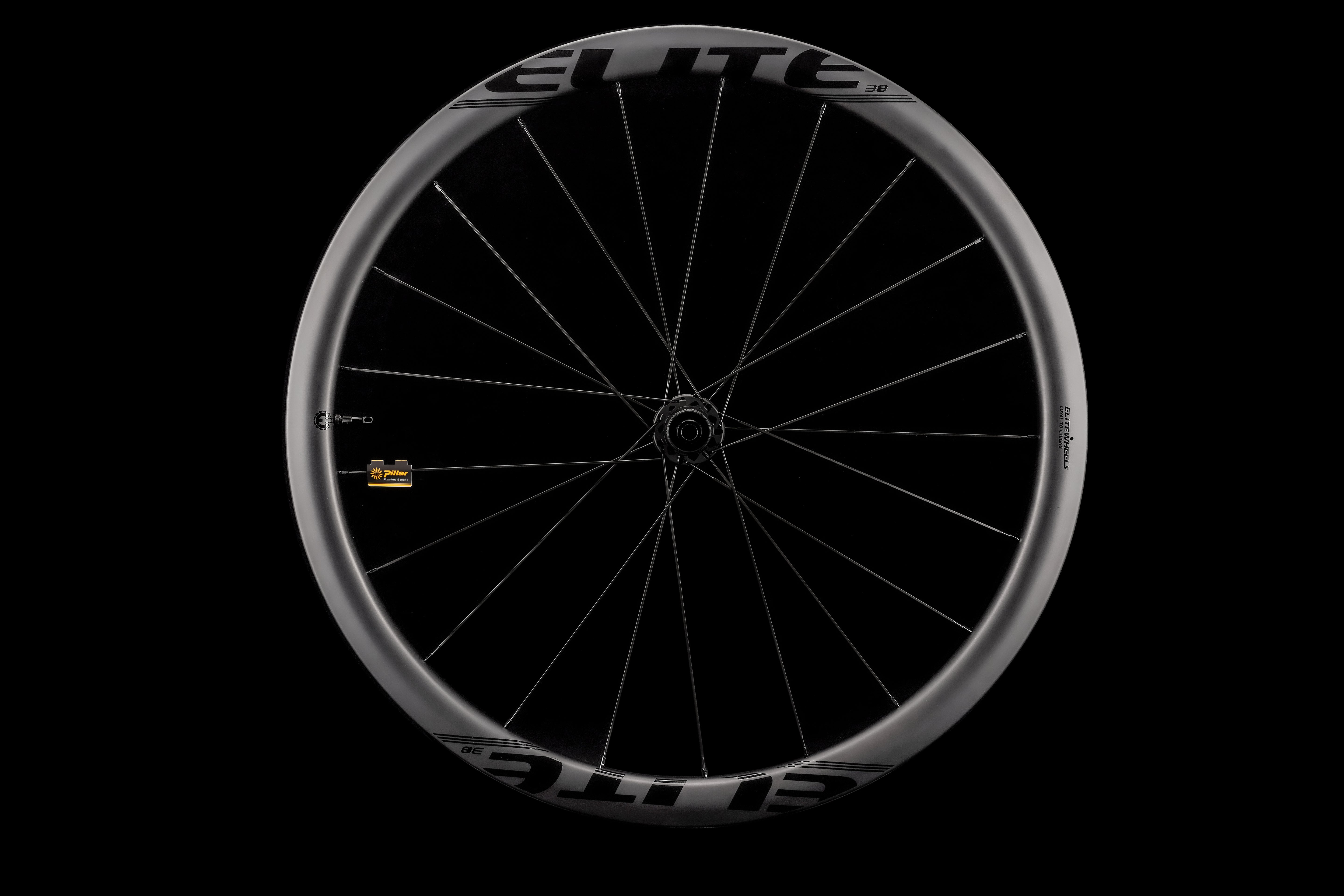

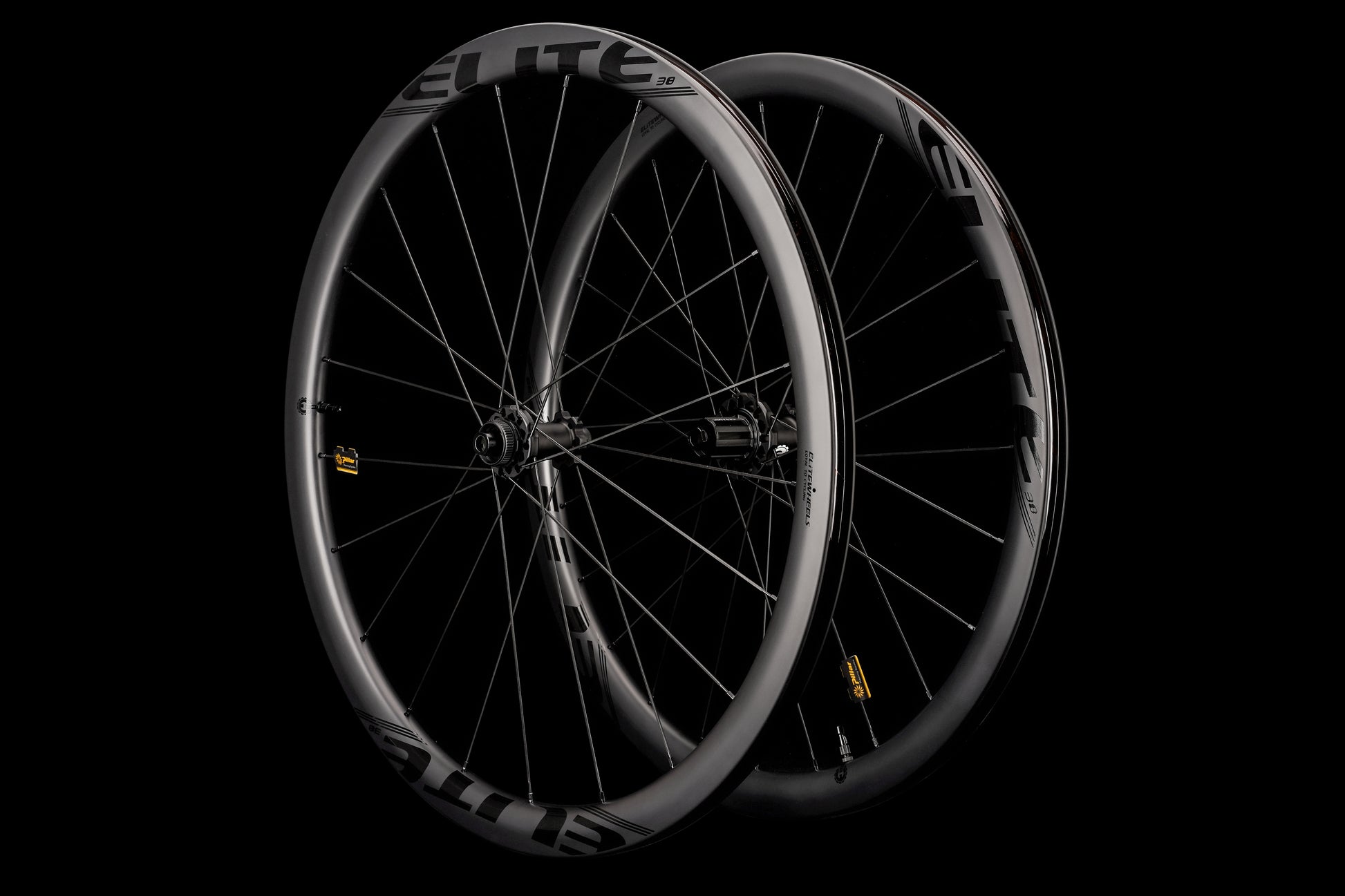

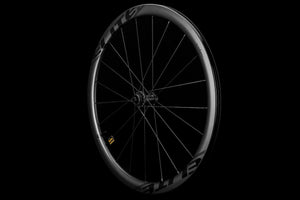

Elitewheels Marvel 38D Carbon Wheels

Decals
Rs. 56,999.00
Rs. 56,999.00
Rs. 64,999.00
Shipping calculated at checkout.
3 in Stock Now

EL-ML-38D-SL

View Full Details
Elitewheels Marvel 38D Carbon Wheels

Specification

Rim
Wheel Size 700c
Tire Compatibility Clincher/Tubeless
Bead Type Hooked
Rim Depth 38mm
Inner Width 17mm
Outer Width 28mm

Hub
Front Hub Spacing 12x100mm
Rear Hub Spacing 12x142mm
Bearing S&S Ceramic
Brake Compatibility Disc (Center Lock)
Freehub Type 4 pawls
Freehub Compatibility Shimano / SRAM XDR

Spoke
Front Spoke Pattern 2X/Radial (2:1)
Rear Spoke Pattern 2X/1X (2:1)
Spoke Count 21F/24R
Spoke Type Pillar PA 1423
Nipple Type Sapim Secure Lock

Other
Weight(pair) 1604g±30g (without tubeless valves and rim tape)
Extras Rim Tape(Installed), Tubeless Valves(Installed)
Rider Weight Limit 285lbs/130kg
Recommended Tire Sizes 700 x 23-33C
Max Tire Pressure 120psi
Certification CE Certified

Find The Right Wheelset For You Find The Right Wheelset For You

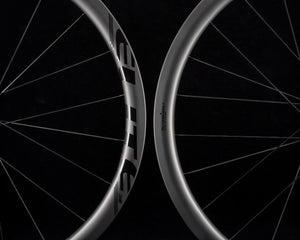

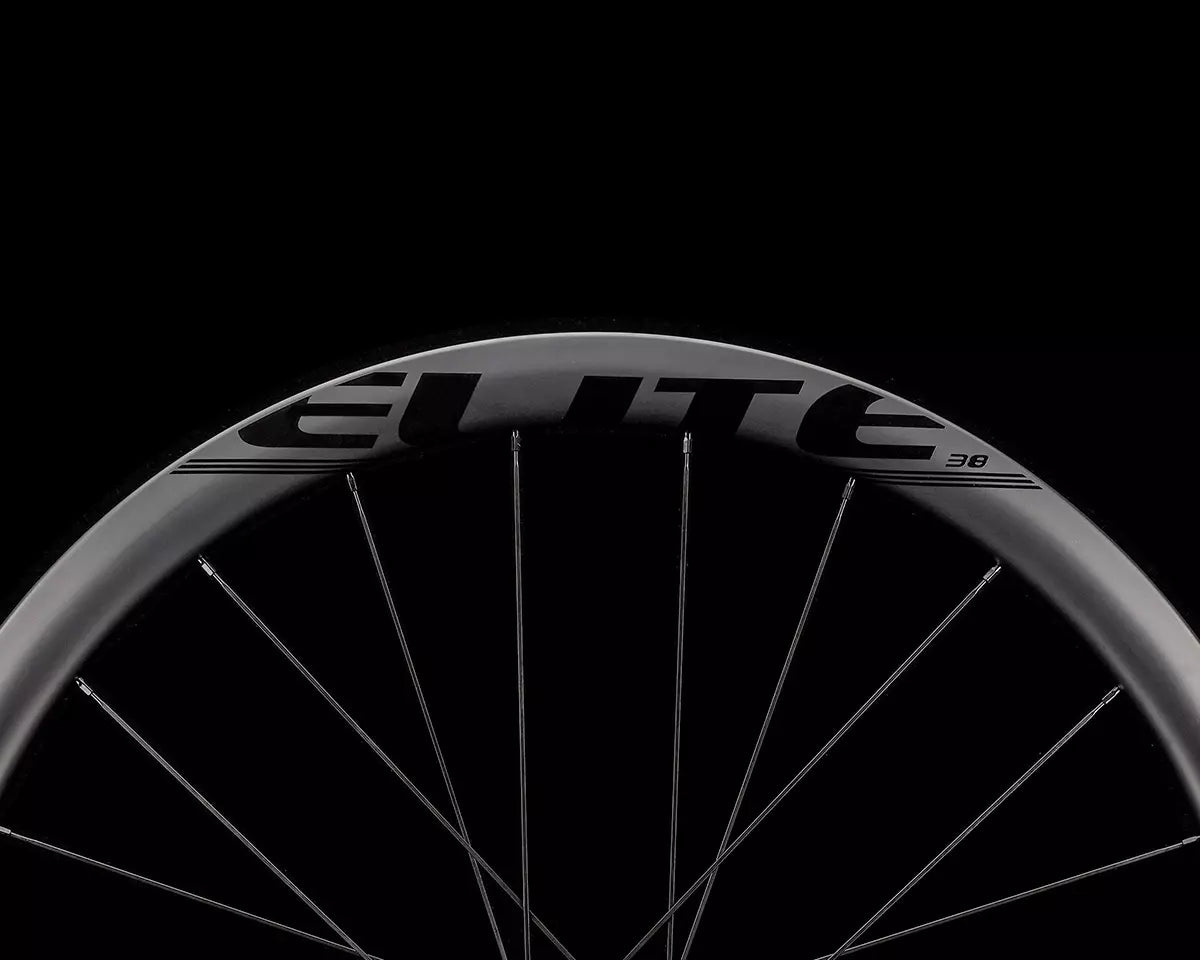

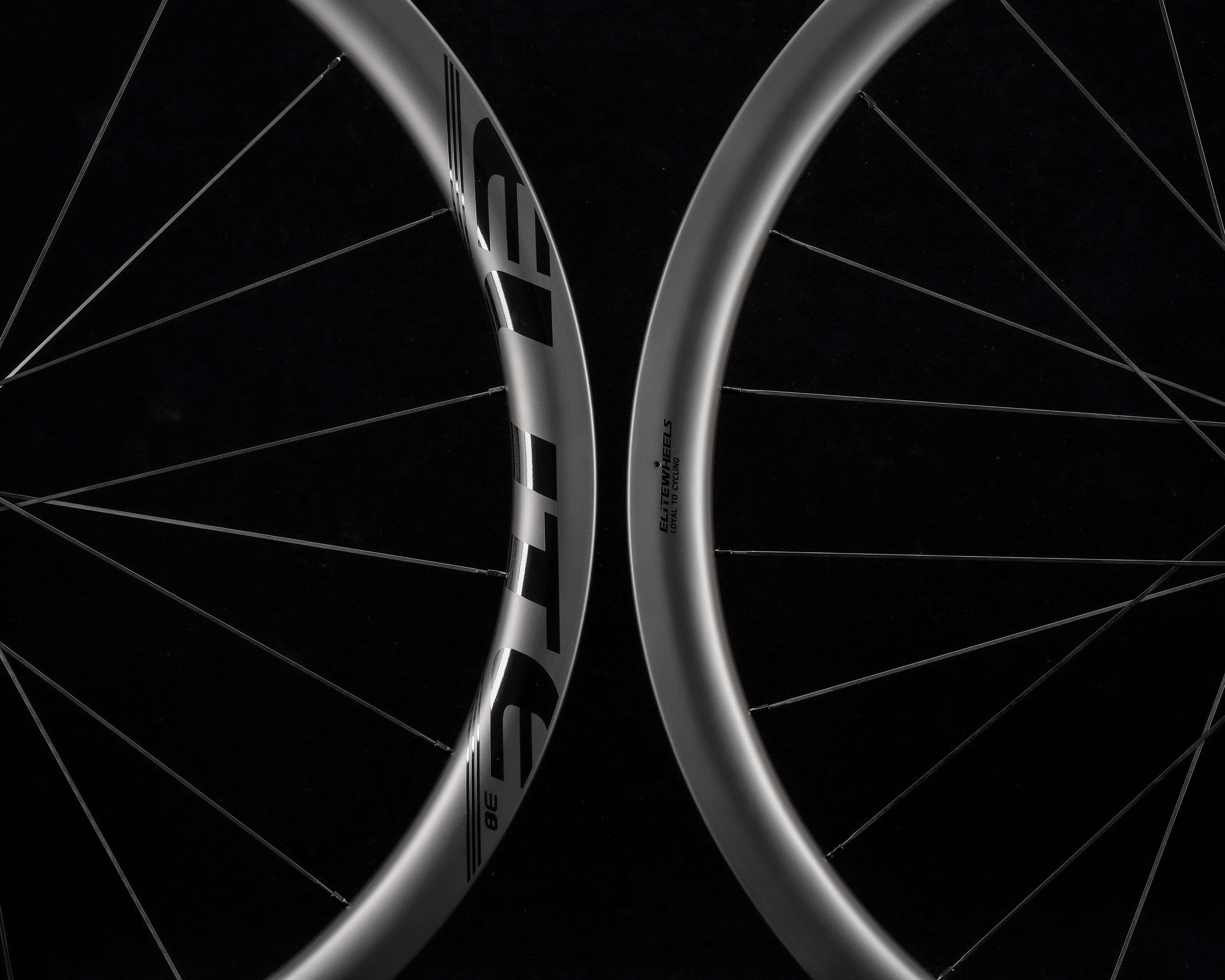

Rims

At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

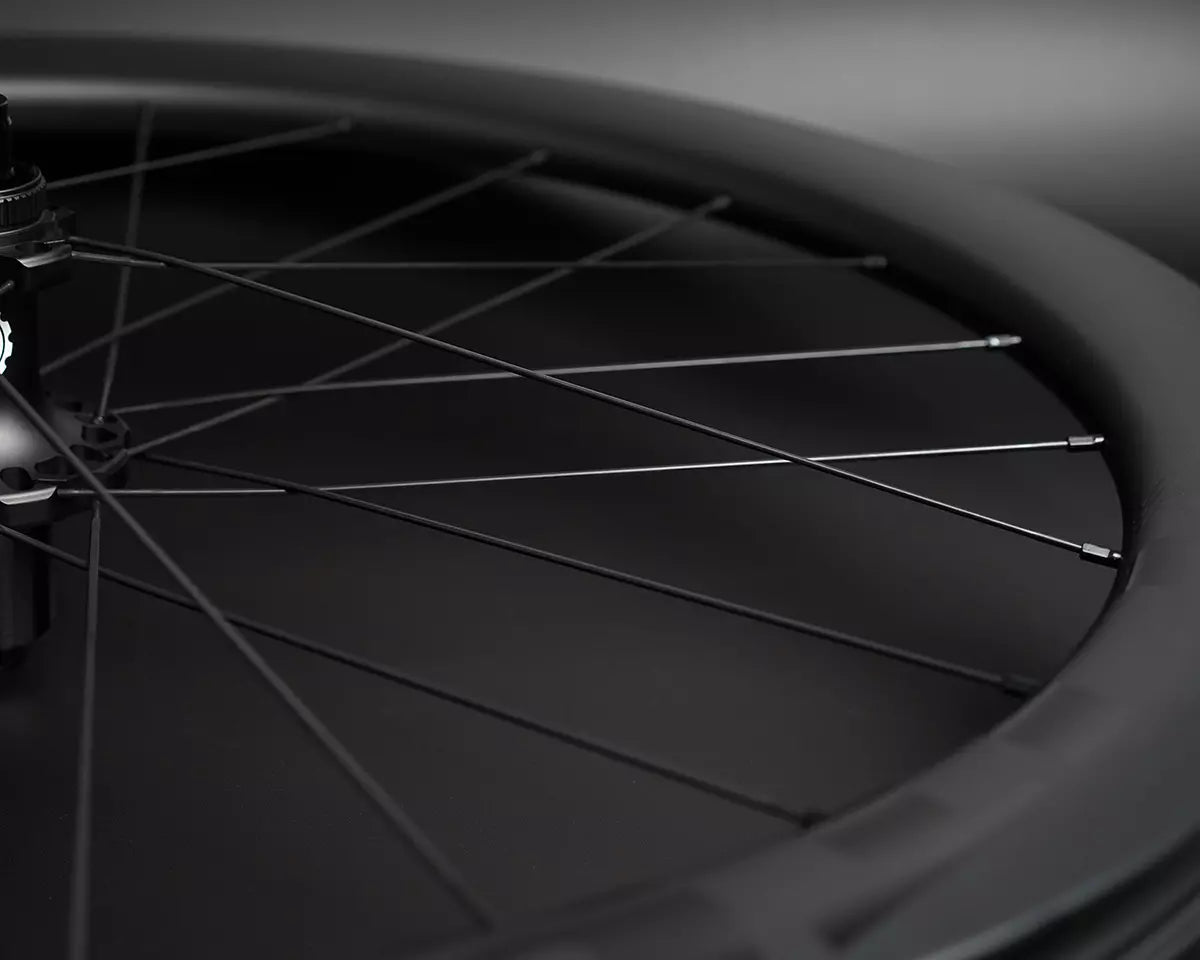

Spokes

Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.

Optional Upgrade: (Sapim CX-Ray spokes) and (Pillar Wing 20) spokes can be substituted for an extra cost, saving more than 90 grams off the complete wheelset.

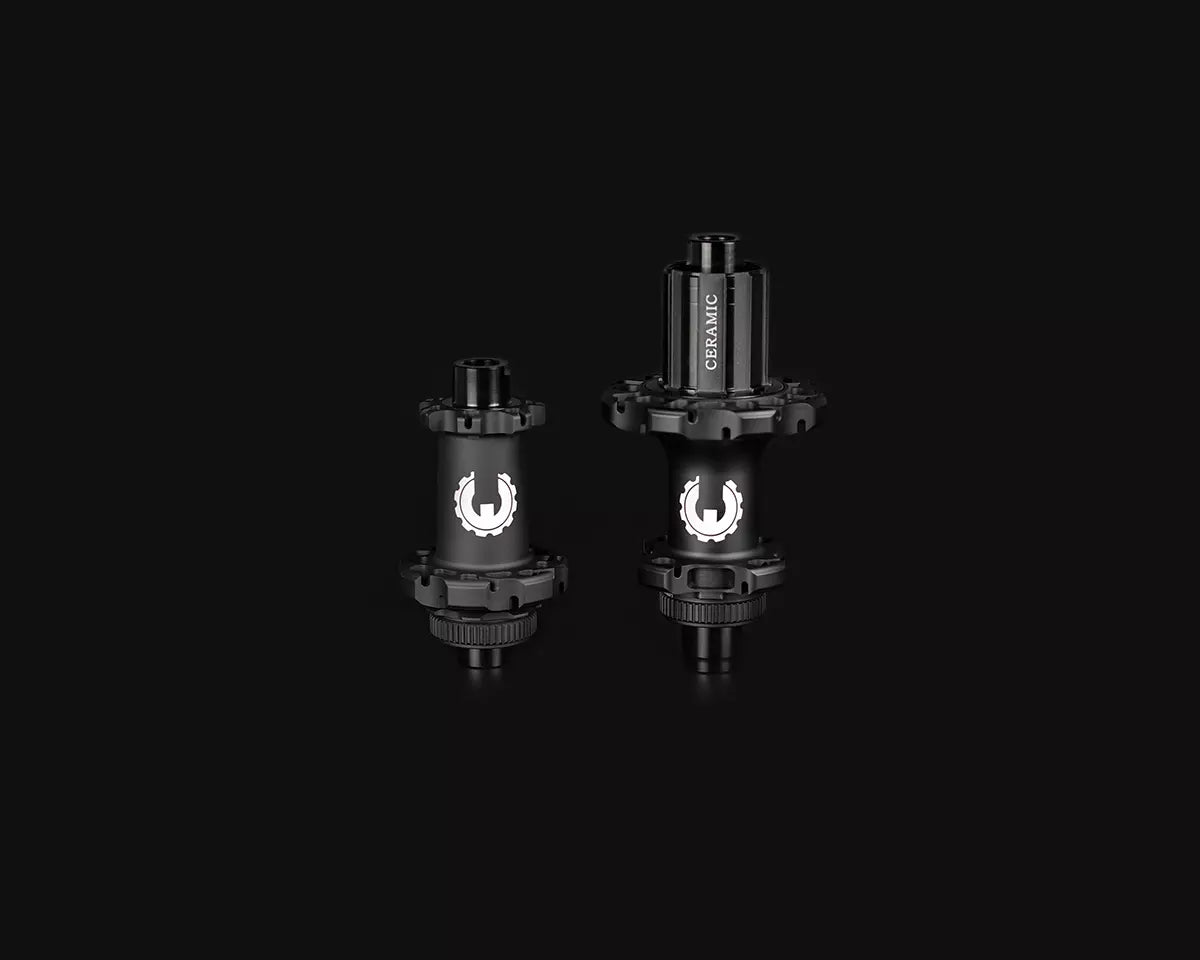

Hubs

To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

Bearings

The Marvel 38D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

More about Ceramic Bearings

Tubeless in Mind

All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.
