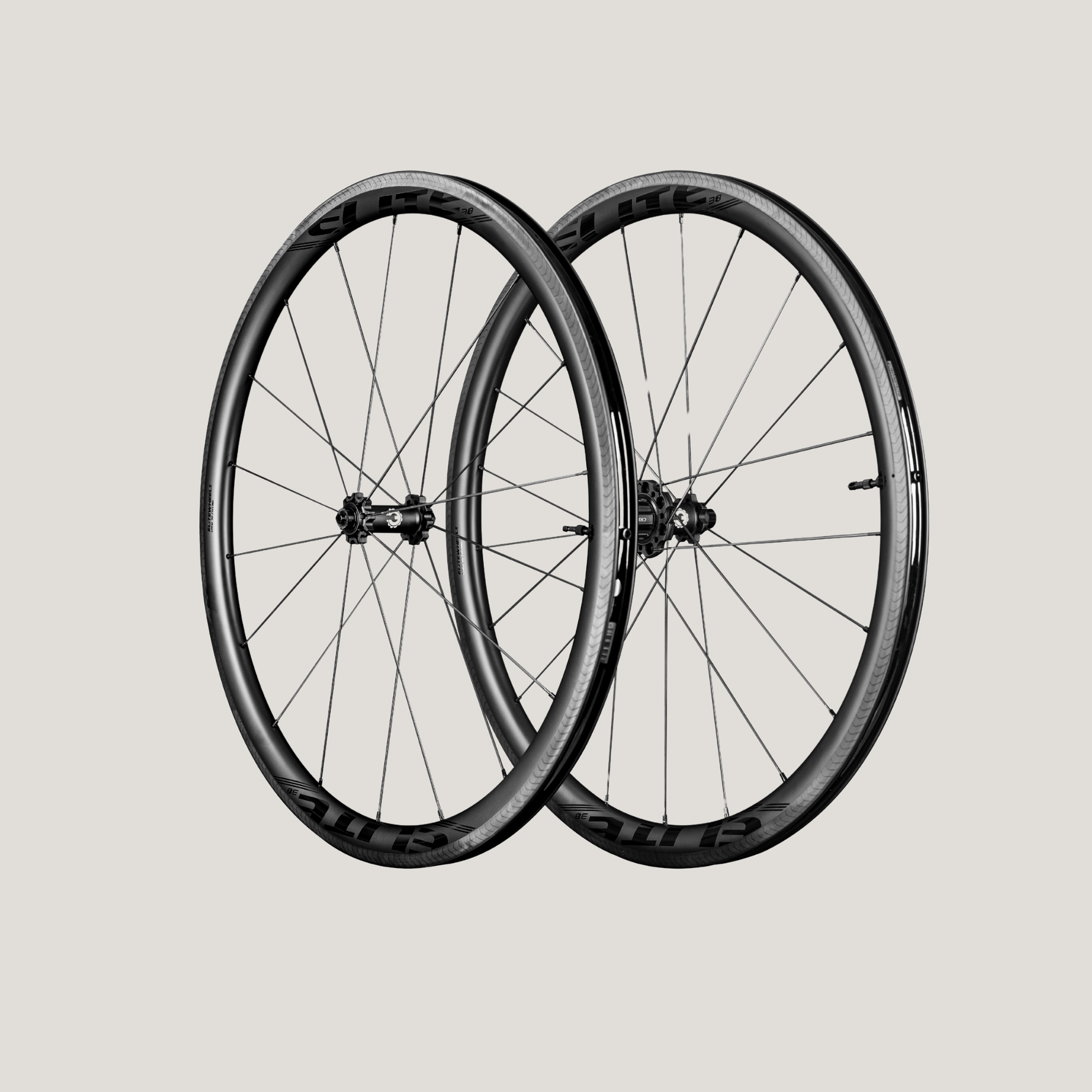

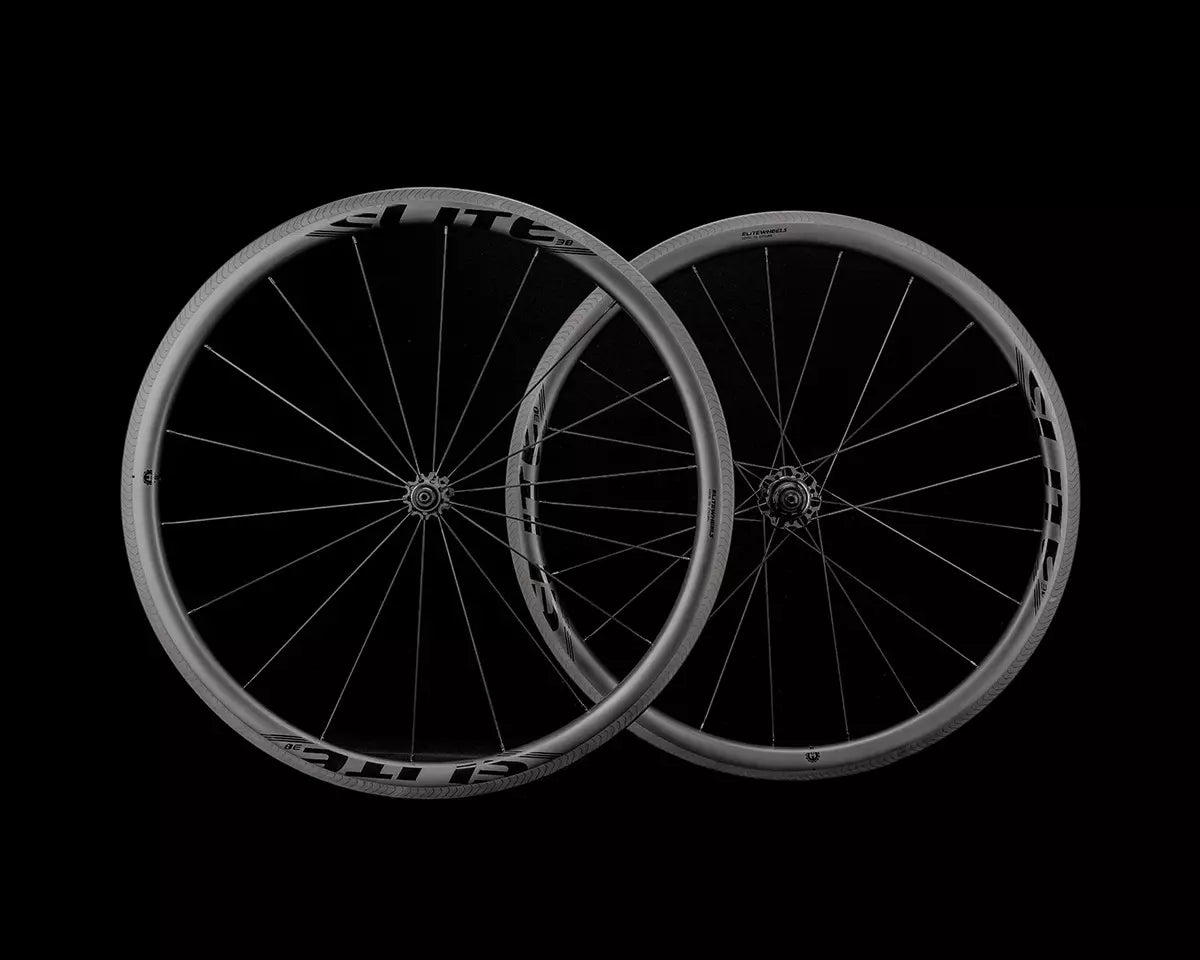

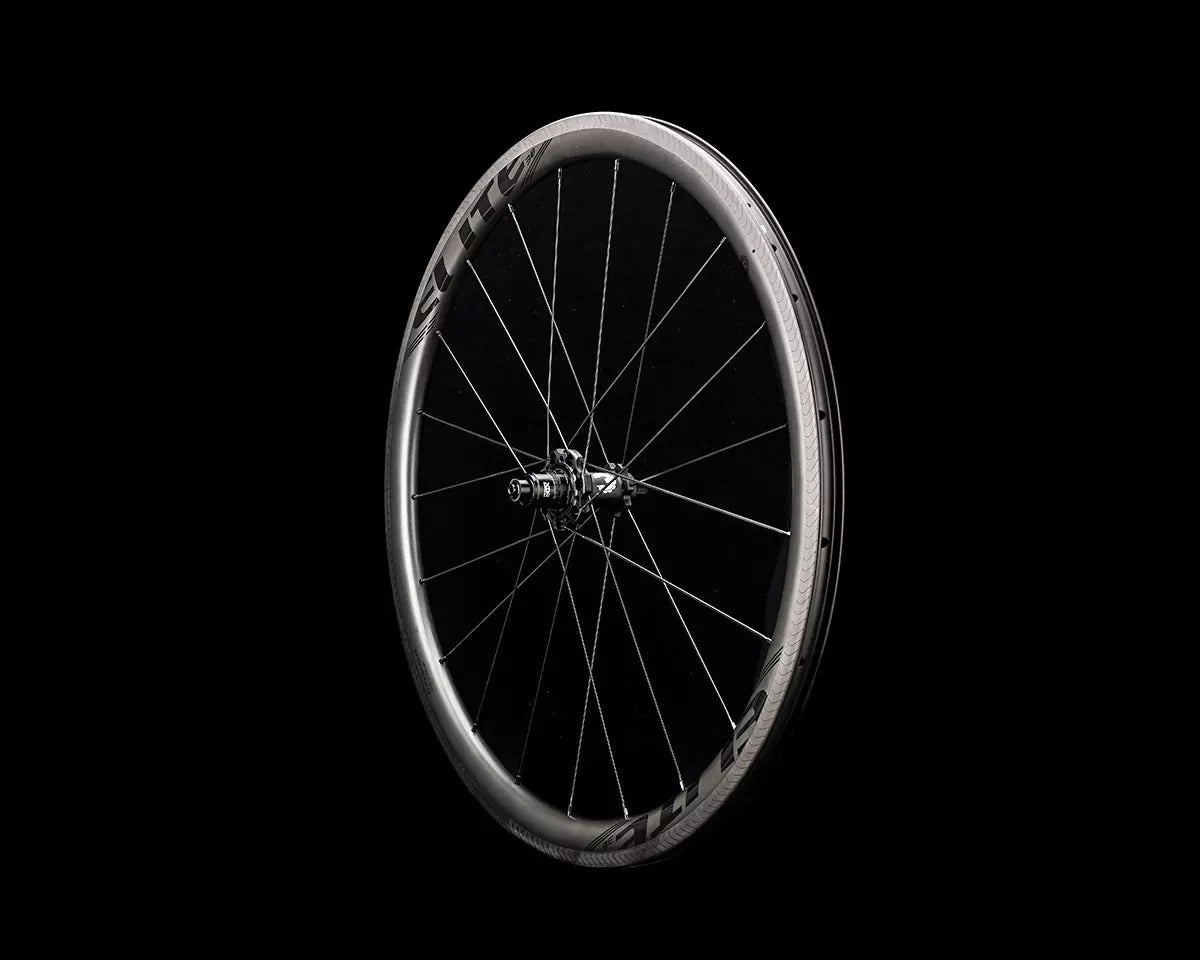

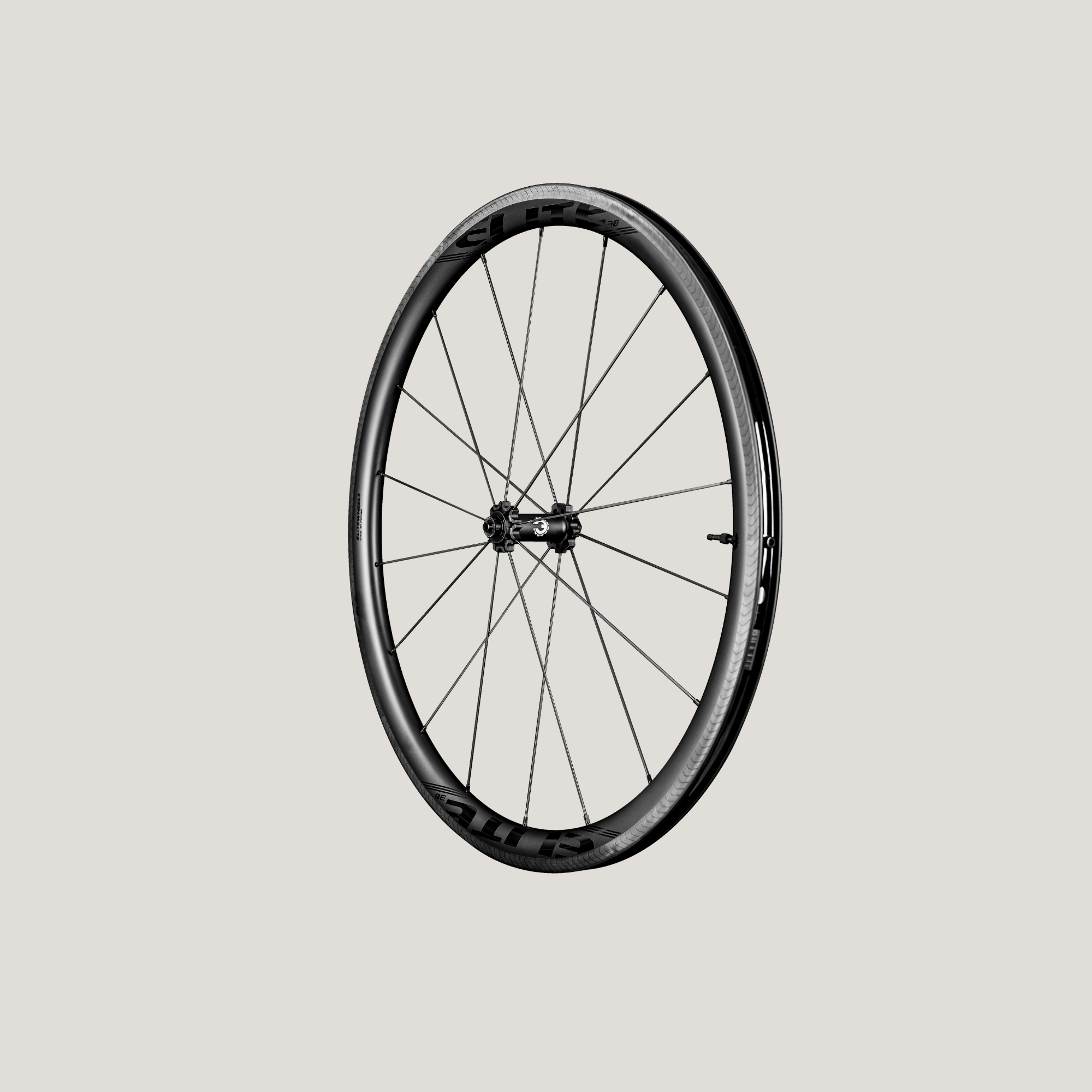

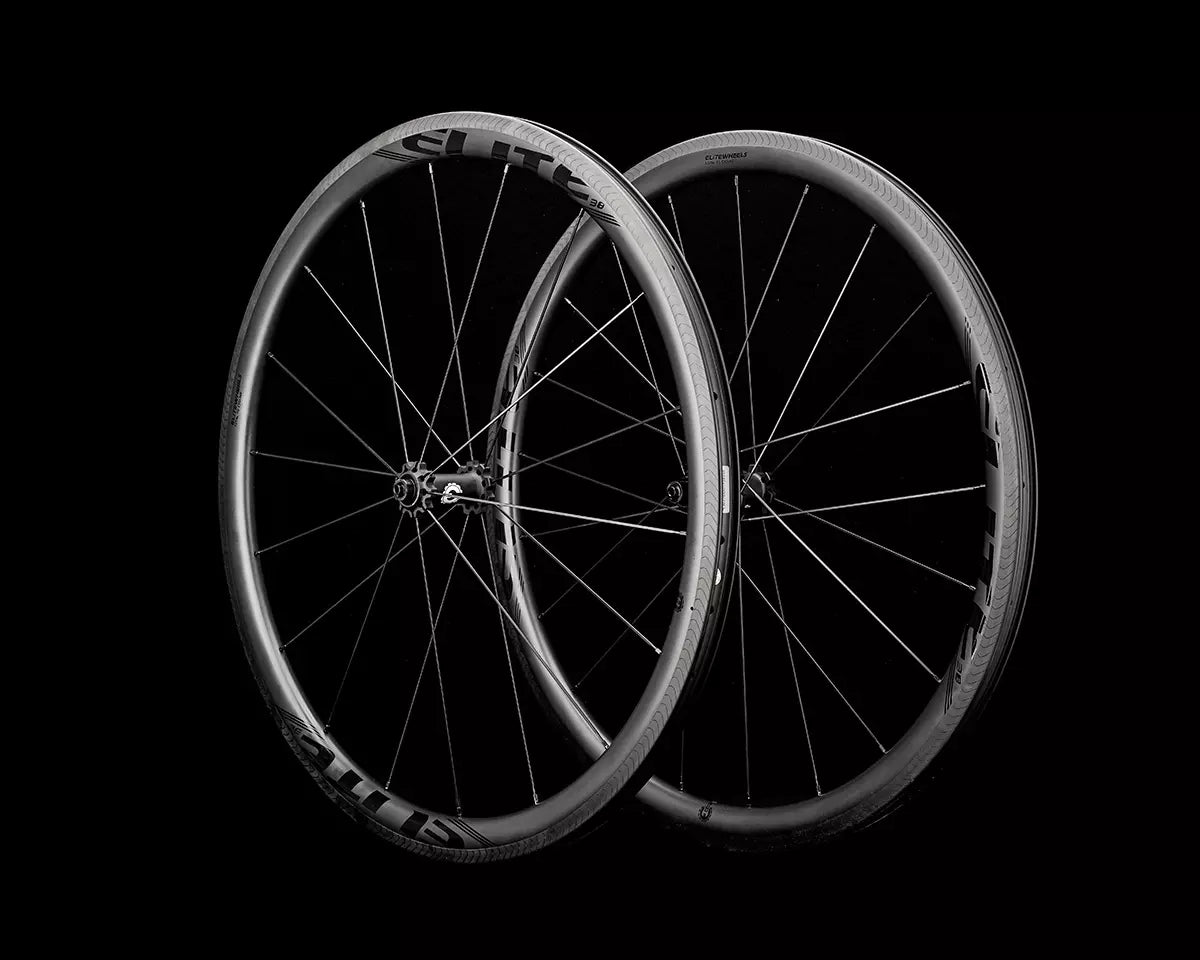

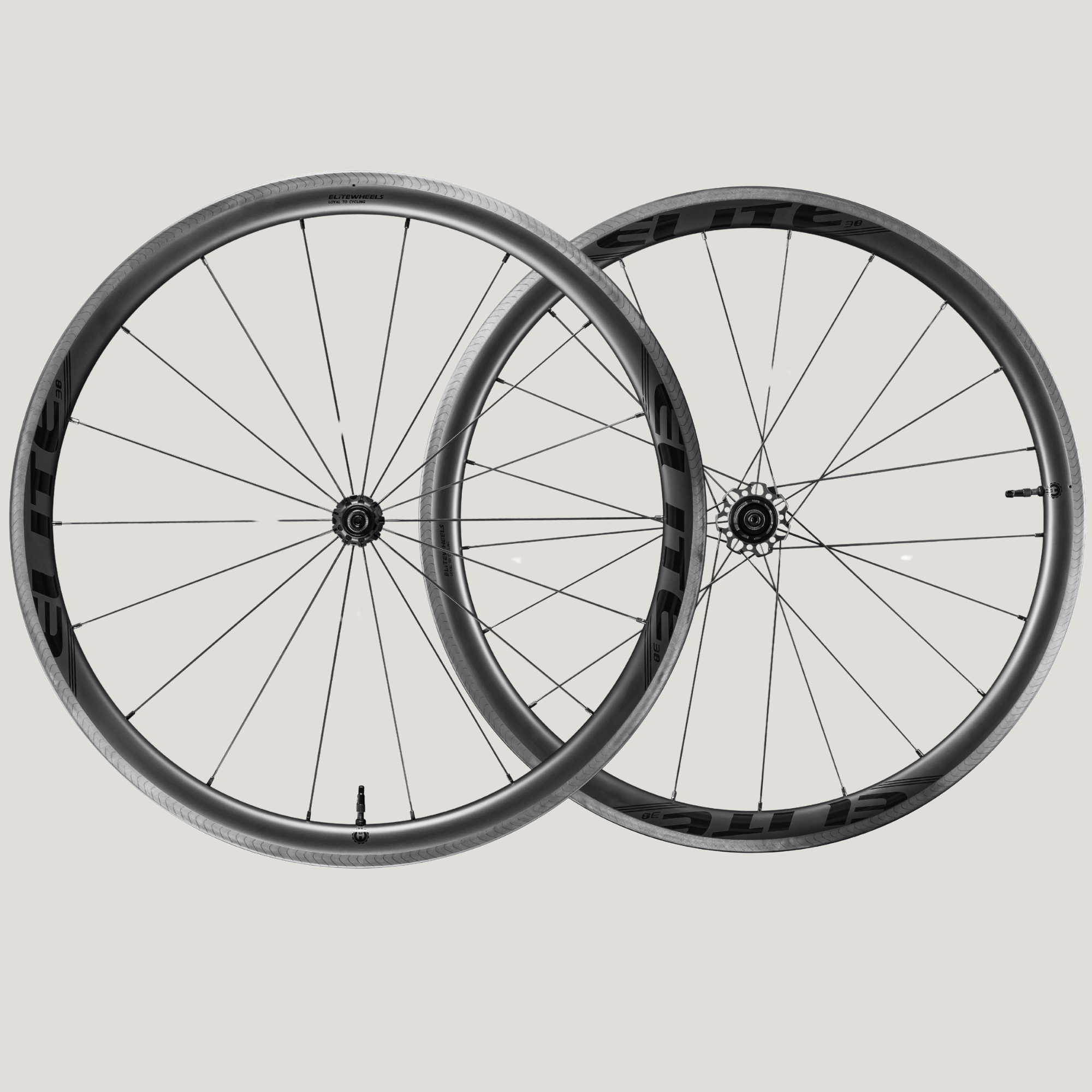

Elitewheels Marvel 38V Carbon Wheels

Color
Rs. 59,999.00
Rs. 59,999.00
Rs. 69,999.00
Shipping calculated at checkout.
2 in Stock Now

EL-ML-50V-SL

View Full Details
Elitewheels Marvel 38V Carbon Wheels

Specification

Rim
Series Marvel
Wheel Size 700c
Tire Compatibility Clincher/Tubeless
Rim Depth 38mm
Inner Width 17mm
Outer Width 28mm

Hub
Front Hub Spacing QR x 100mm
Rear Hub Spacing QR x 130mm
Bearing S&S Ceramic
Brake Compatibility Rim Brake
Freehub Type 4 pawls
Freehub Compatibility Shimano / SRAM XDR / Campagnolo

Spoke

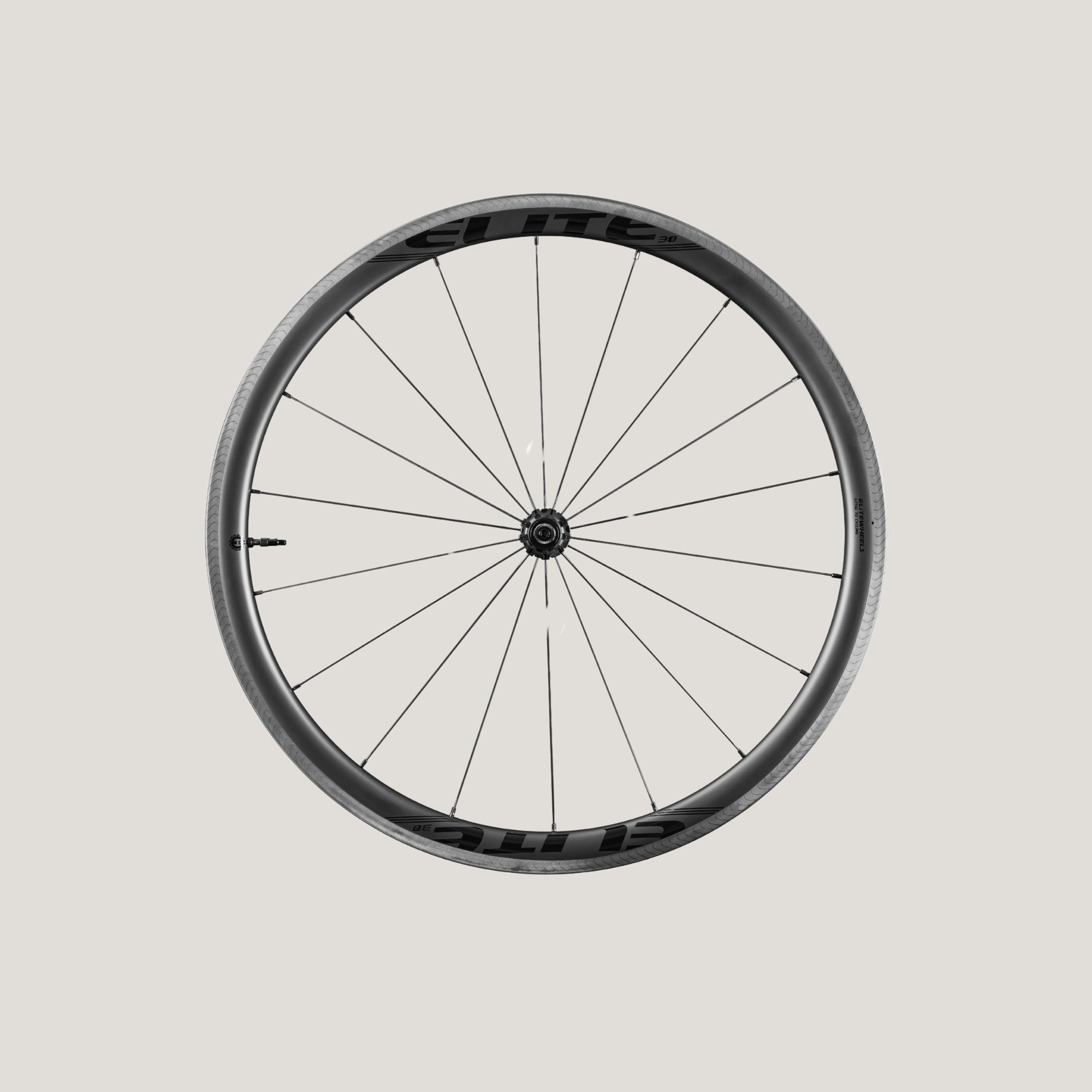

Front Spoke Pattern Radial
Rear Spoke Pattern 2X/Radial (2:1)
Spoke Count 18F/21R
Spoke Type Pillar PA 1423
Nipple Type Sapim Secure Lock

Other
Weight(pair) 1533g±30g (without tubeless valves and rim tape)
Extras Rim Tape(Installed), Tubeless Valves, Quick Releases, Brake Pads(2 Sets)
Rider Weight Limit 285lbs/130kg
Recommended Tire Sizes 700 x 23-33C
Max Tire Pressure 120psi
Certification CE Certified

Find The Right Wheelset For You Find The Right Wheelset For You

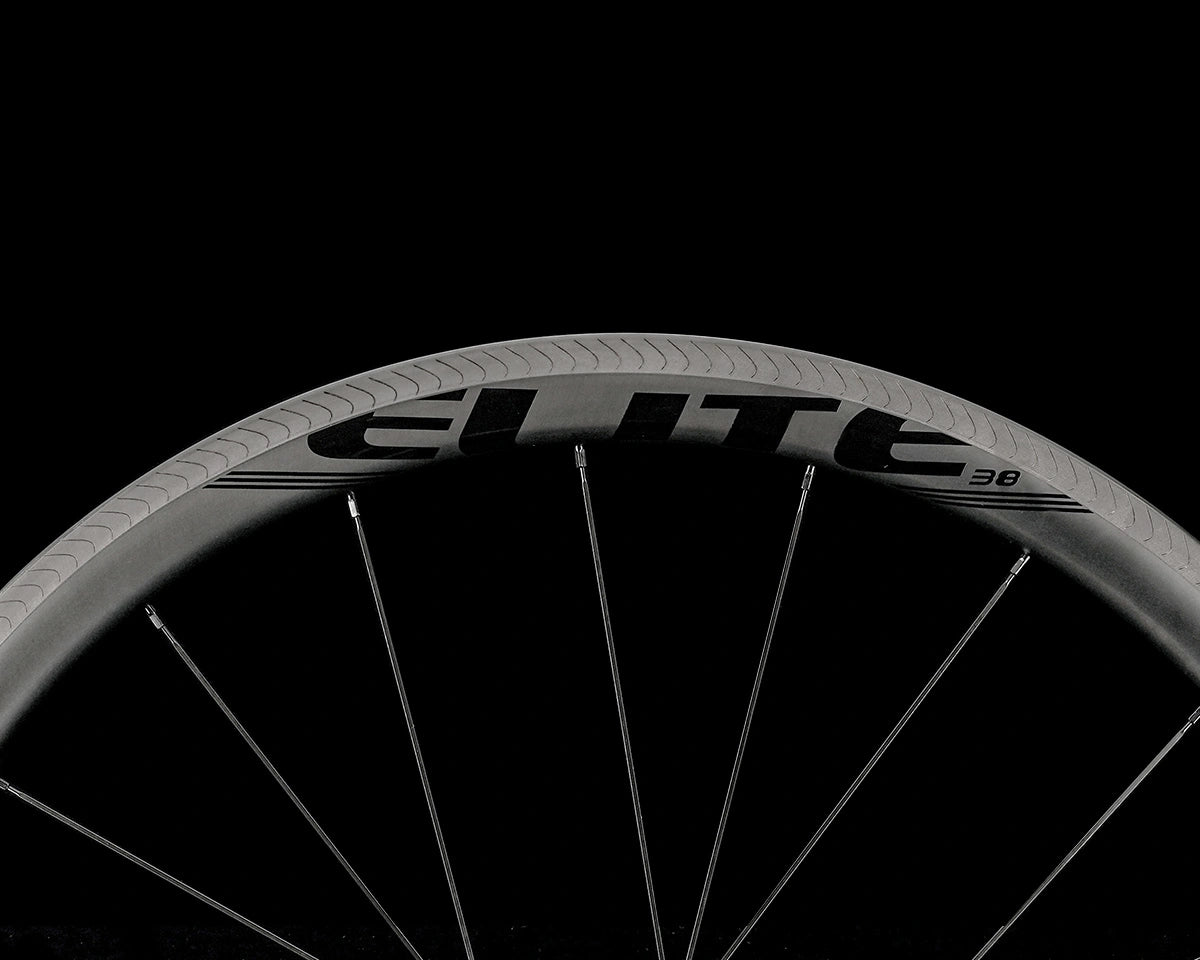

Rims

At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

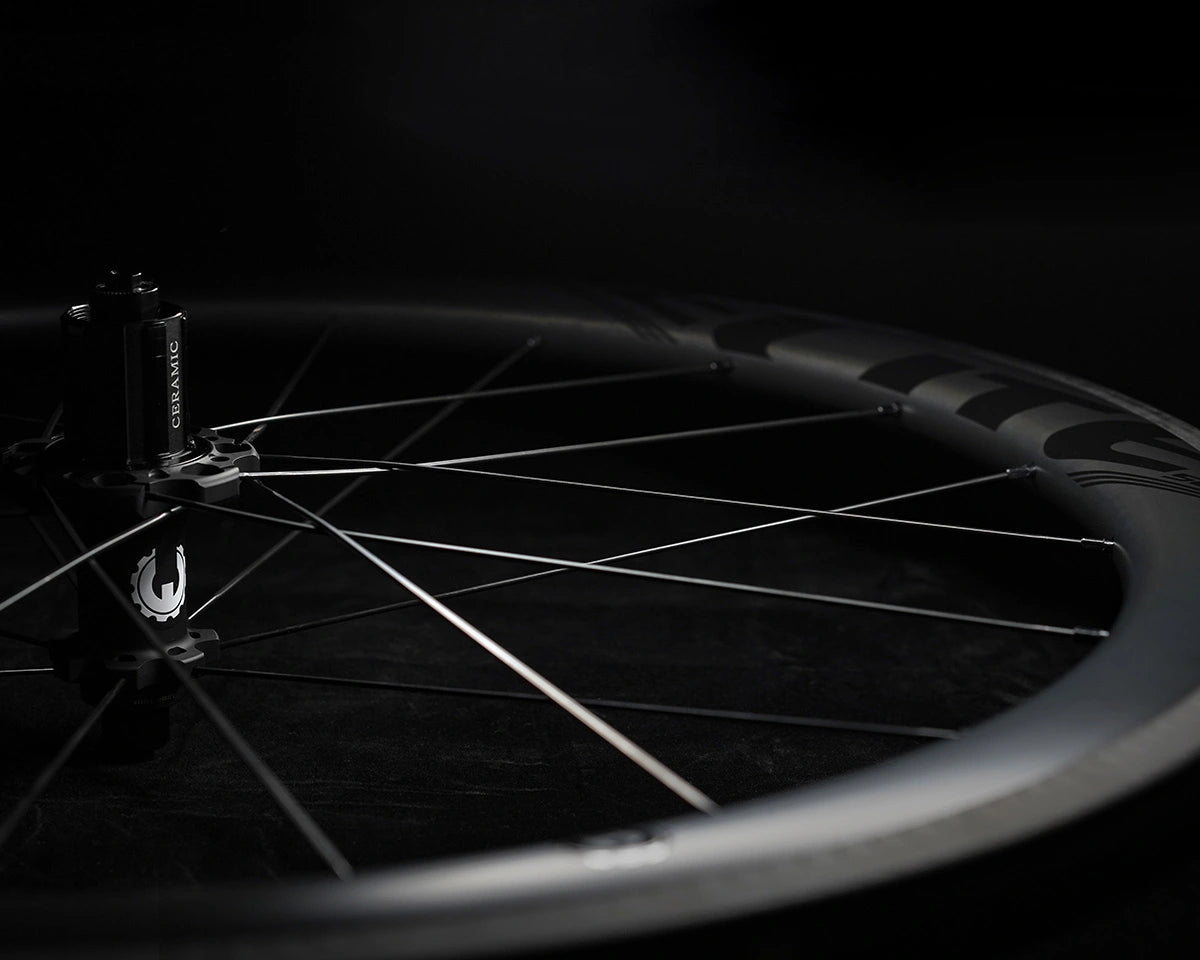

Spokes

Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.

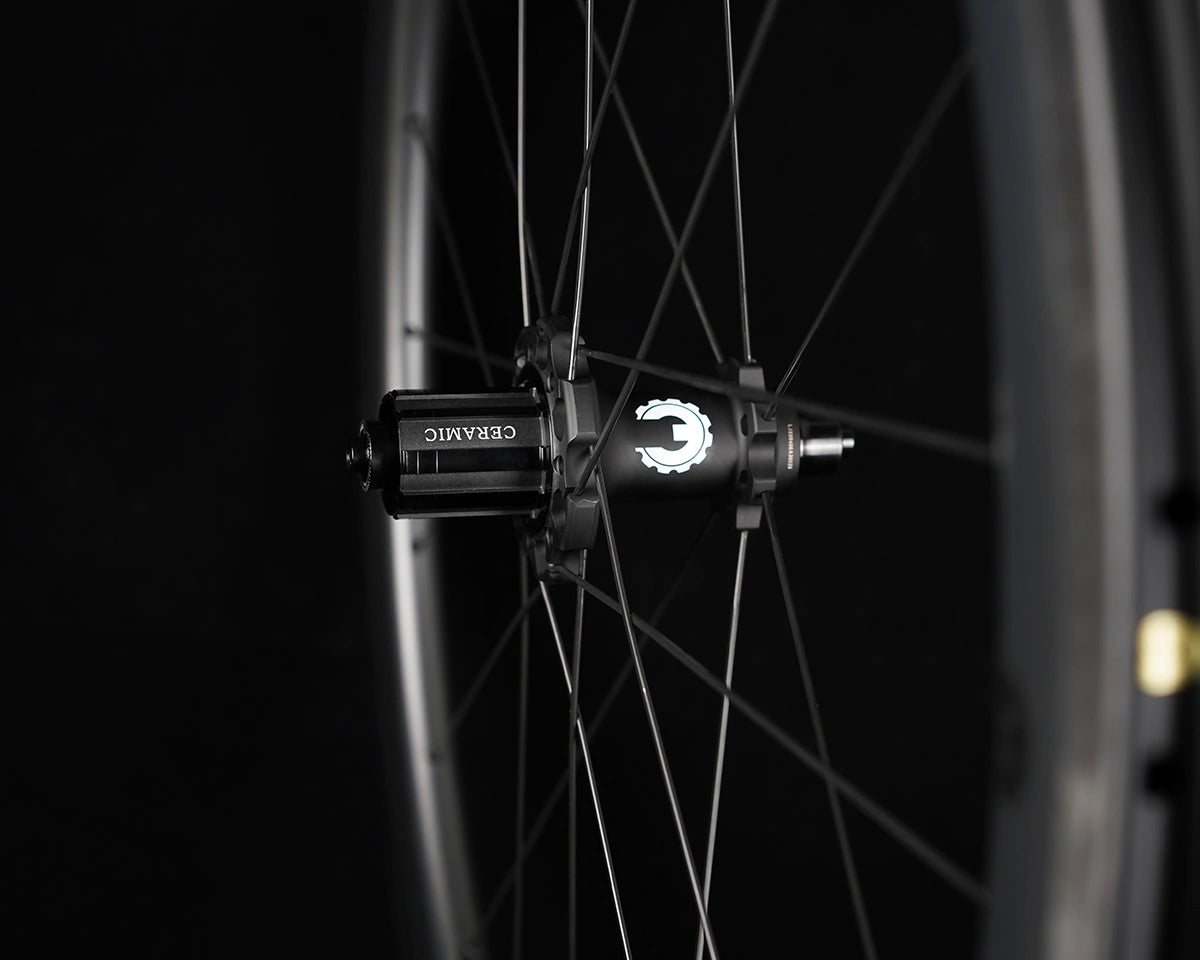

Hubs

To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

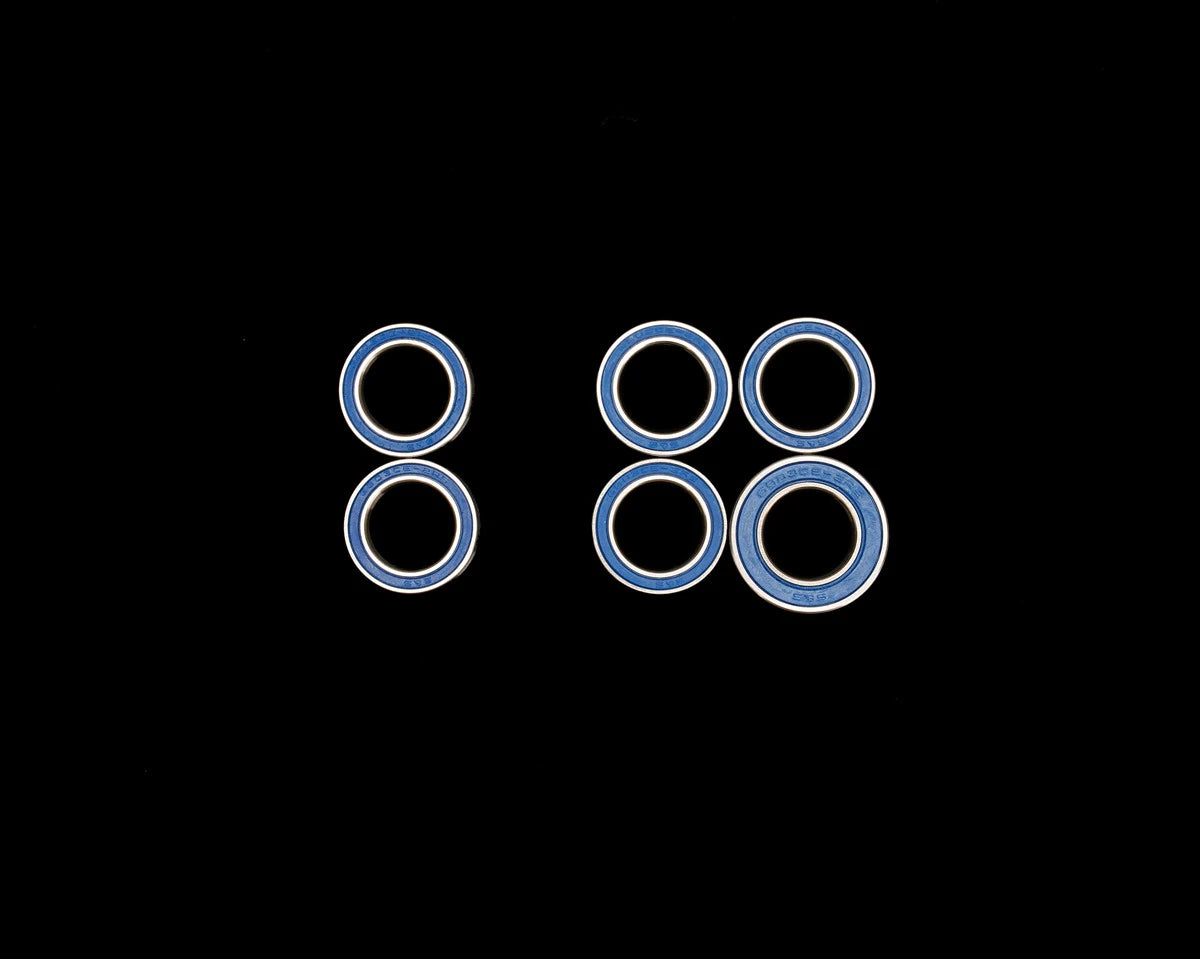

Bearings

The Marvel 38V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

More about Ceramic Bearings

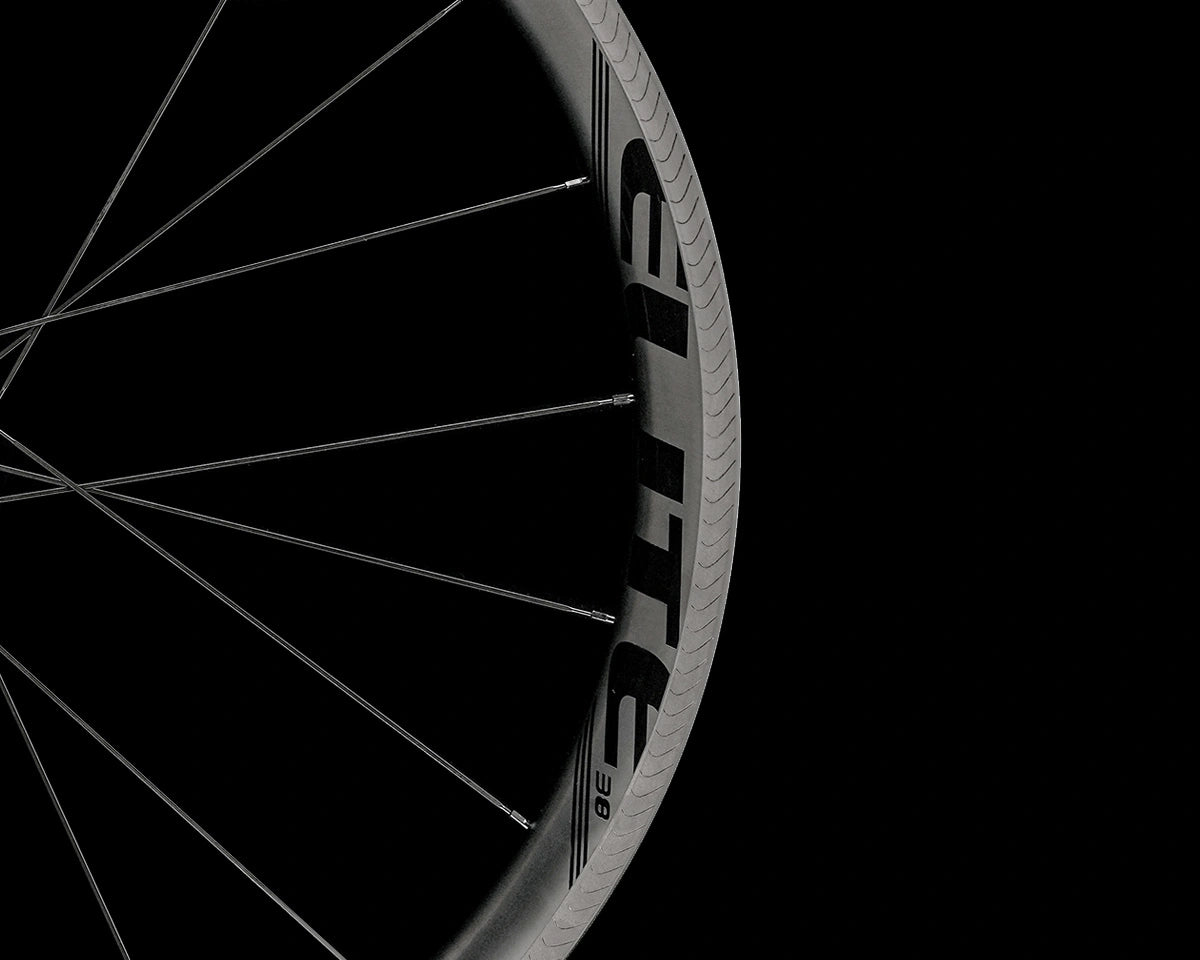

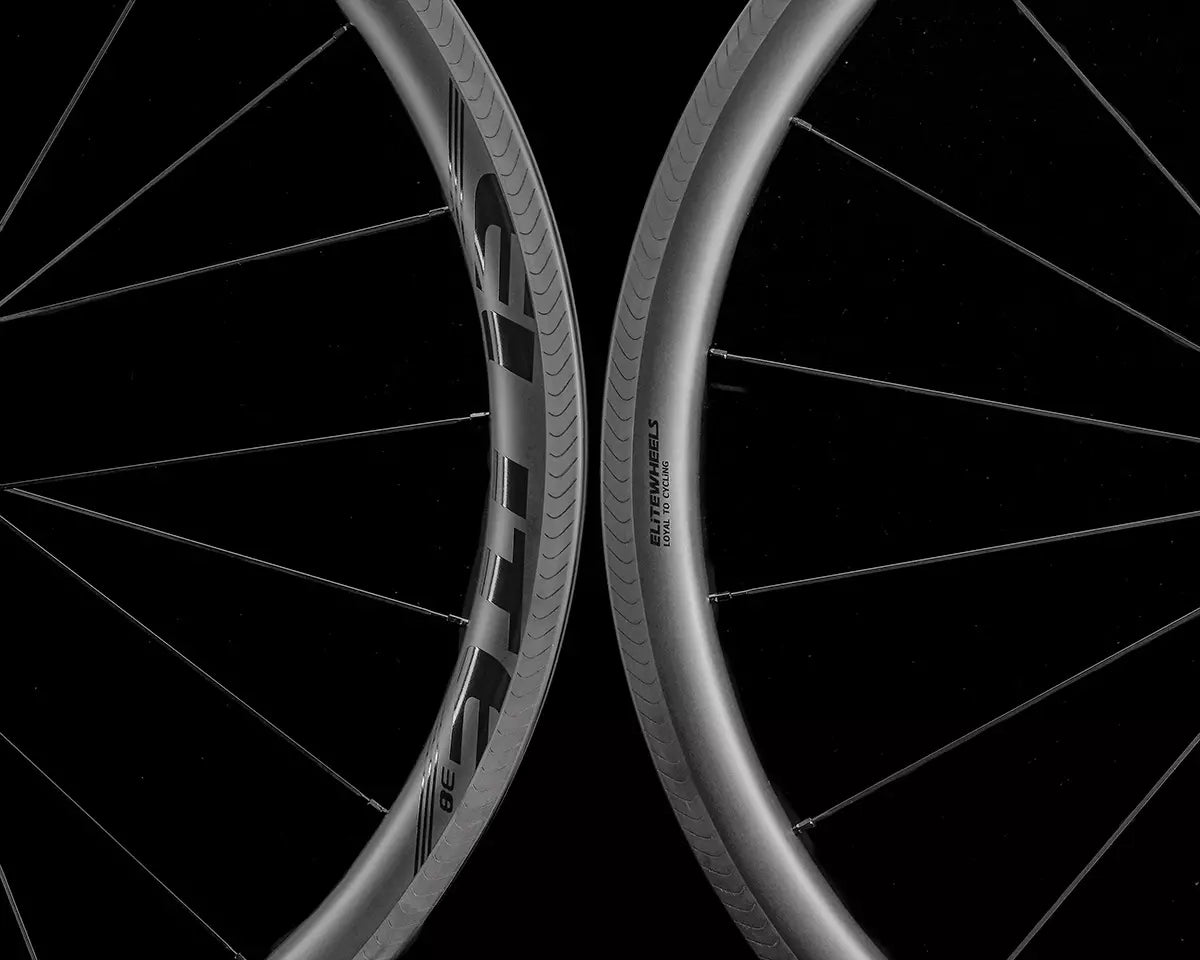

Brake Surface

Some descriptionThe Marvel 38V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent braking in wet conditions.
